Fits the McLaren 570s, 540c and the 570GT

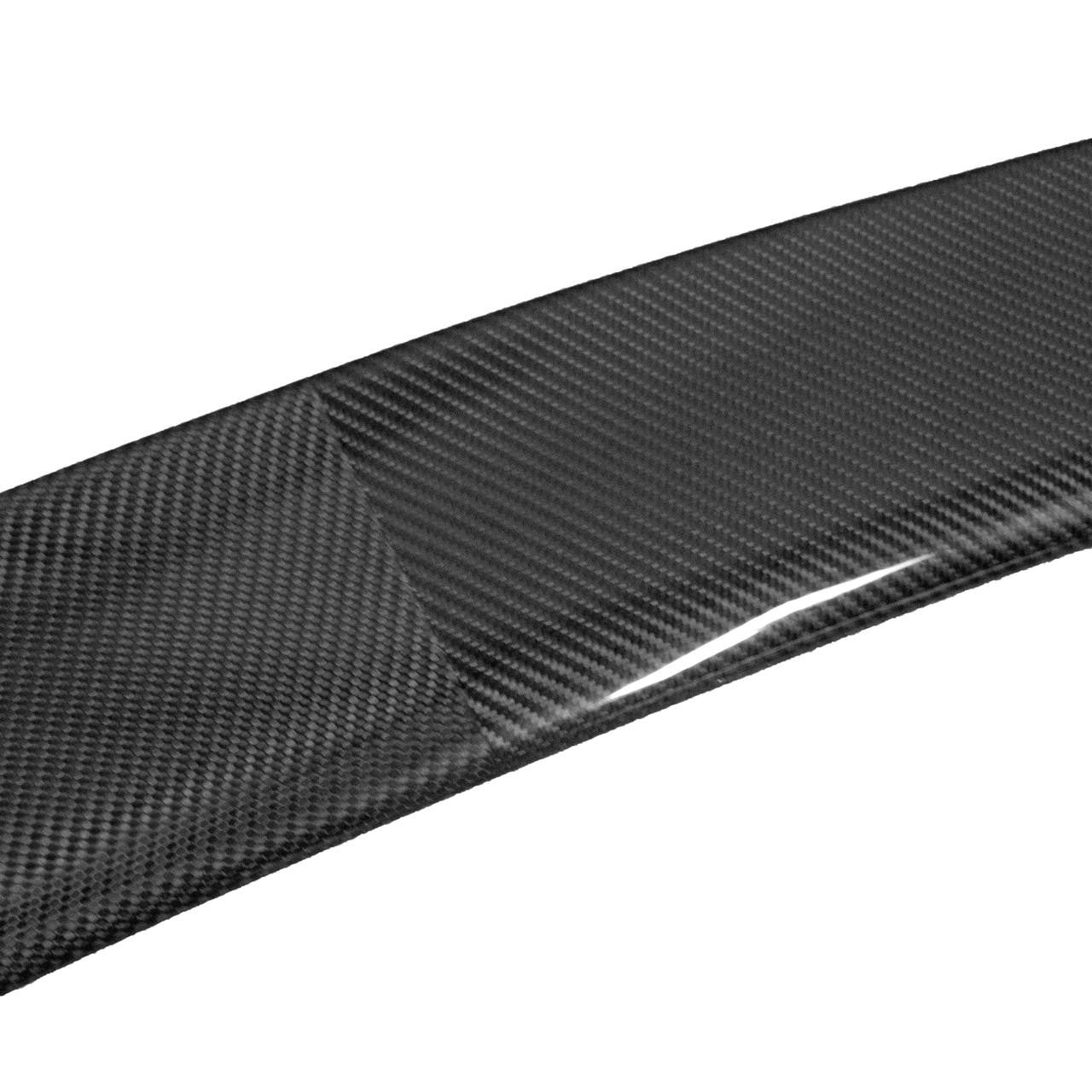

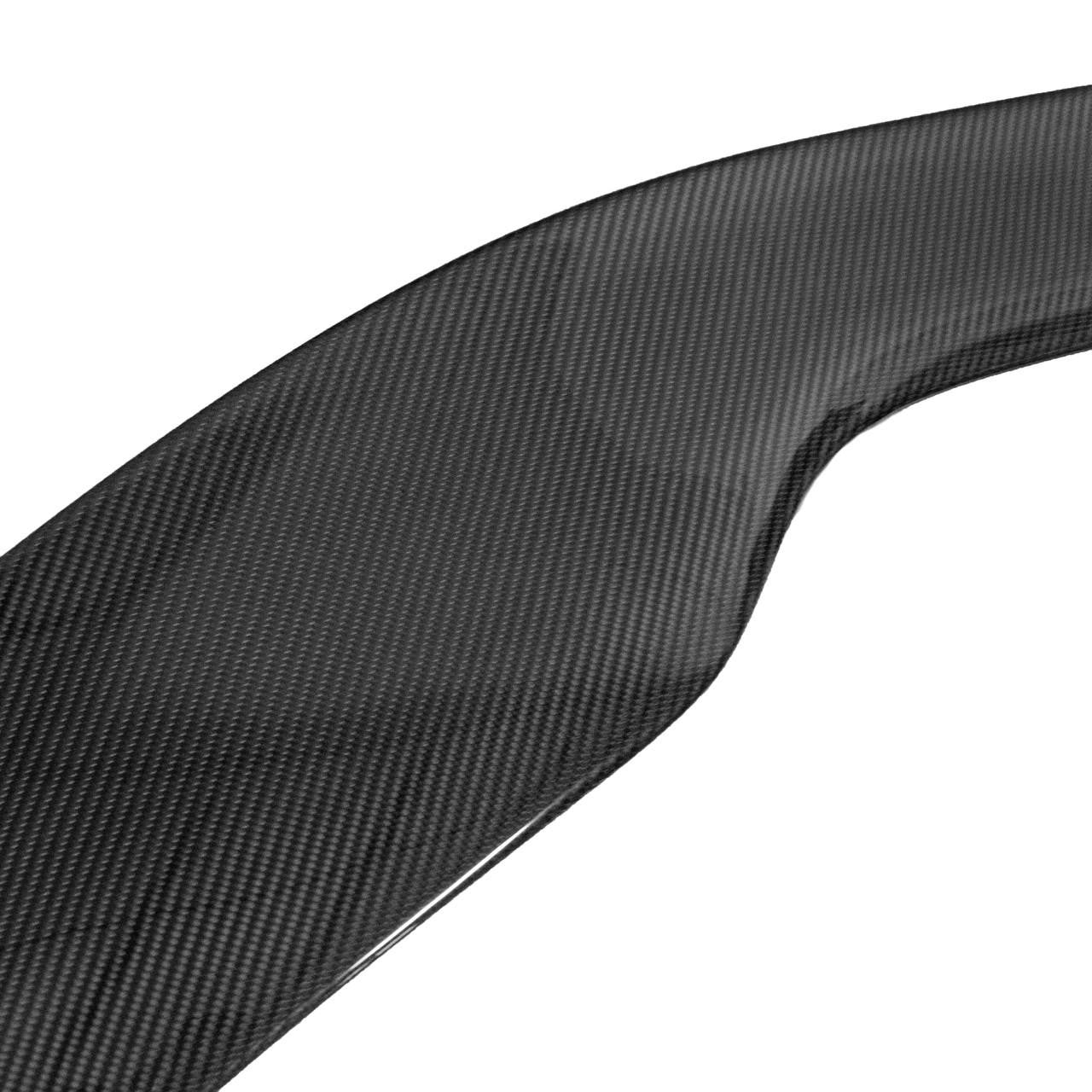

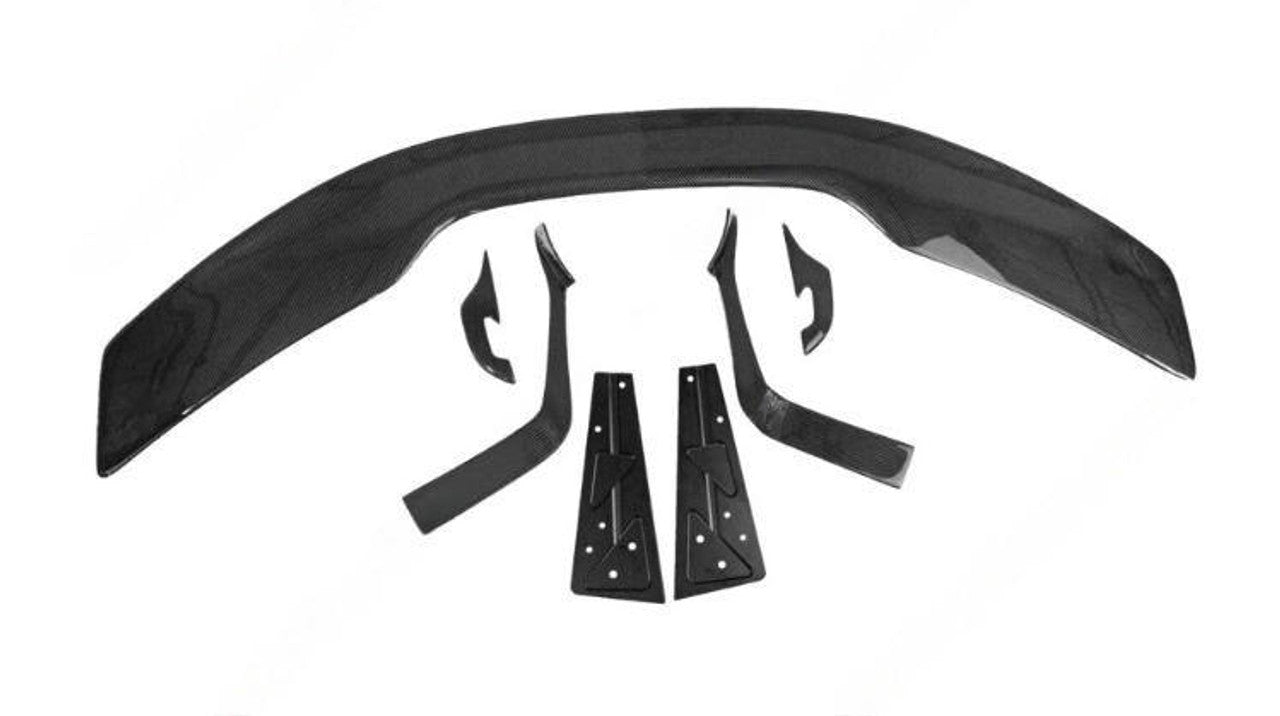

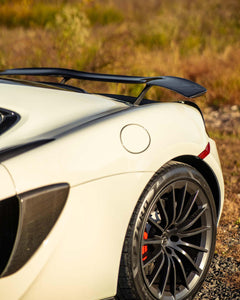

The McLaren 540 and 570 Carbon Fiber GT Style Rear Spoiler Wing - Includes required brackets and hardware
This item is constructed as replacement part and is designed to install in the factory location with no need for modification. Some disassembly will be required
All of Fabspeed's Carbon Fiber Products are designed to be replacement components. No core or exchanges are required, allowing you to retain the original components of your vehicle as part of the investment.
Boost Aerodynamics & Style
The McLaren 570 rear spoiler is one of our favorite carbon fiber upgrades for good reason! Our ultra-streamlined design is a work of modern innovation and race-ready appeal that maximizes downforce, reduces drag, and looks incredible.
Mirroring the streamlined profile of the McLaren, our custom-crafted spoiler flows seamlessly with the McLaren 570’s unique body lines. In stark contrast to frail knock-offs and oversized spoilers that clash with the McLaren 570, we have meticulously refined our spoiler to provide the perfect balance of high-performance dependability and class. Every square inch of our carbon fiber spoiler has been calibrated to cut through the air with maximum efficiency. We exclusively utilize a superior carbon fiber weave that is finished with a premier UV coating. The result? Your McLaren 570 gains the competitive edge and a revolutionary curb appeal that is guaranteed to make jaws drop.
Like our easy-to-install Tesla Model 3 carbon fiber spoiler, our precision-tuned McLaren 570 spoiler is an effortless improvement that can be completed in minutes. As important as ease of integrating the spoiler, our rugged mounting system is the perfect complement to the ultra-durable properties of our carbon fiber. When you choose Fabspeed carbon fiber to enhance your McLaren, you can expect:
- Superior material quality that resists heat, corrosion, moisture, and UV damage.
- It has an impressive weave and high-shine finish that is luxurious and easy to maintain.
- Component stability and unwavering performance while accelerating, cornering, and unleashing top speeds.
How To Install
Press the engine cover release button, remove the two Allen head screws in the center of the cover, and carefully remove the engine cover by evenly lifting up/back until the panel is free of the mounts. Depending on the vehicle model, engine cover removal steps may vary slightly.
After removing the panel, uninstall the original spoiler (if applicable). Next, remove the original bracket hardware by removing the bolts along the inside of the support brackets, followed by removing the bolts along the horizontal underside of the upper support bracket. This will allow you to remove the entire bracket assembly in one piece.

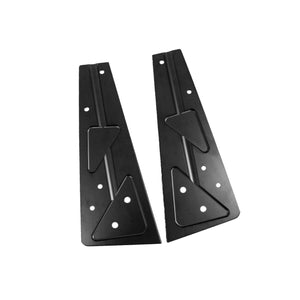

After removing the bracket assembly, unscrew the original brackets from the upper support bracket, replace with the Fabspeed side brackets, and remount the rubber grommets. Before installing the new bracket assembly, depending on your vehicle model, you may need to trim a small portion of the engine cover panel for support bracket clearance if this is your first spoiler install. We strongly advise seeking our professional installation support if you do not feel confident with this step.
After the panel is prepped, install the Fabspeed bracket assembly, replacing all bolts and washers along the sides and underneath the upper bracket. Test fit the spoiler wing and retrim if necessary. If everything aligns correctly, install the spoiler arms to the brackets with the included hardware.
Next, replace the engine cover and refasten the original hardware if applicable. With the wings fully installed, fasten the spoiler to the wing arms with the included hardware. That’s it! You’re ready to enjoy your optimized McLaren!
Do you need help with the installation or have questions about related upgrades, such as our McLaren GT exhaust systems? Contact our helpful team at Fabspeed Motorsport for detailed guidance and part recommendations today.
