Eventuri Mercedes C523 GLC63 / GLC63S Black Carbon Intake

The Mercedes GLC63 intake system is the culmination of extensive development and testing. Our design brief consisted of 3 main objectives: 1) Increased flow rate. 2) Low intake temperatures. 3) Smooth airflow. The first objective was met by utilizing all of the limited space available in the GLC63S engine bay, resulting in a 35% higher flow rate over the stock system. The second objective was met by designing a fully sealed system. The GLC63S engine bay reaches high temperatures with heat sources like the turbos in close proximity to the intake, so it is crucial that the intake remain sealed. The final objective was met by designing an organically shaped system with custom rounded panel filters to ensure the airflow path contained no sharp corners and therefore allowed for the flow to remain laminar. With smooth transitions from the filters to the turbo inlets, our intake minimizes the formation of turbulence, and therefore the turbos are able to operate more efficiently.

With all 3 objectives met, our GLC63 intake system delivers on all fronts and allows for the turbos to generate boost more efficiently. This results in an improved throttle response and genuine power gains, which increase with higher states of tune. Since there are various turbo upgrades available for the GLC63S, we have also catered a specific solution for larger turbos. Our GLC63S intake is available in 2 configurations: 61mm ID outlets to match the stock turbos and 76.5mm ID outlets to match larger turbos.

Performance Increase—Stage 2 : 22- hp, 20- ft-lb

Performance Increase—Stock: 10-12 , 12- ft-lb
Flowbench Data : Stock Airbox 347 CFM : Eventuri 468 CFM (Per Airbox)

Fits:

• GLCC63 /  GLC63S AMG

The Eventuri GLC63S AMG intake system consists of a number of components engineered to perform a specific purpose and fabricated to the highest of standards. Here are the details for each component and the design ethos behind them:

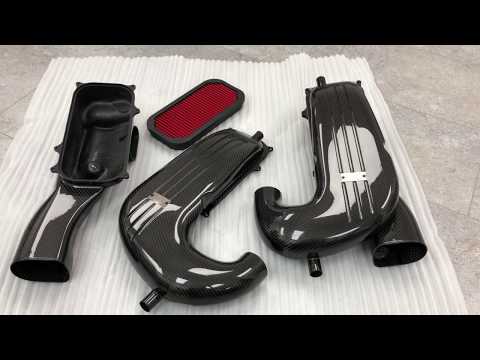

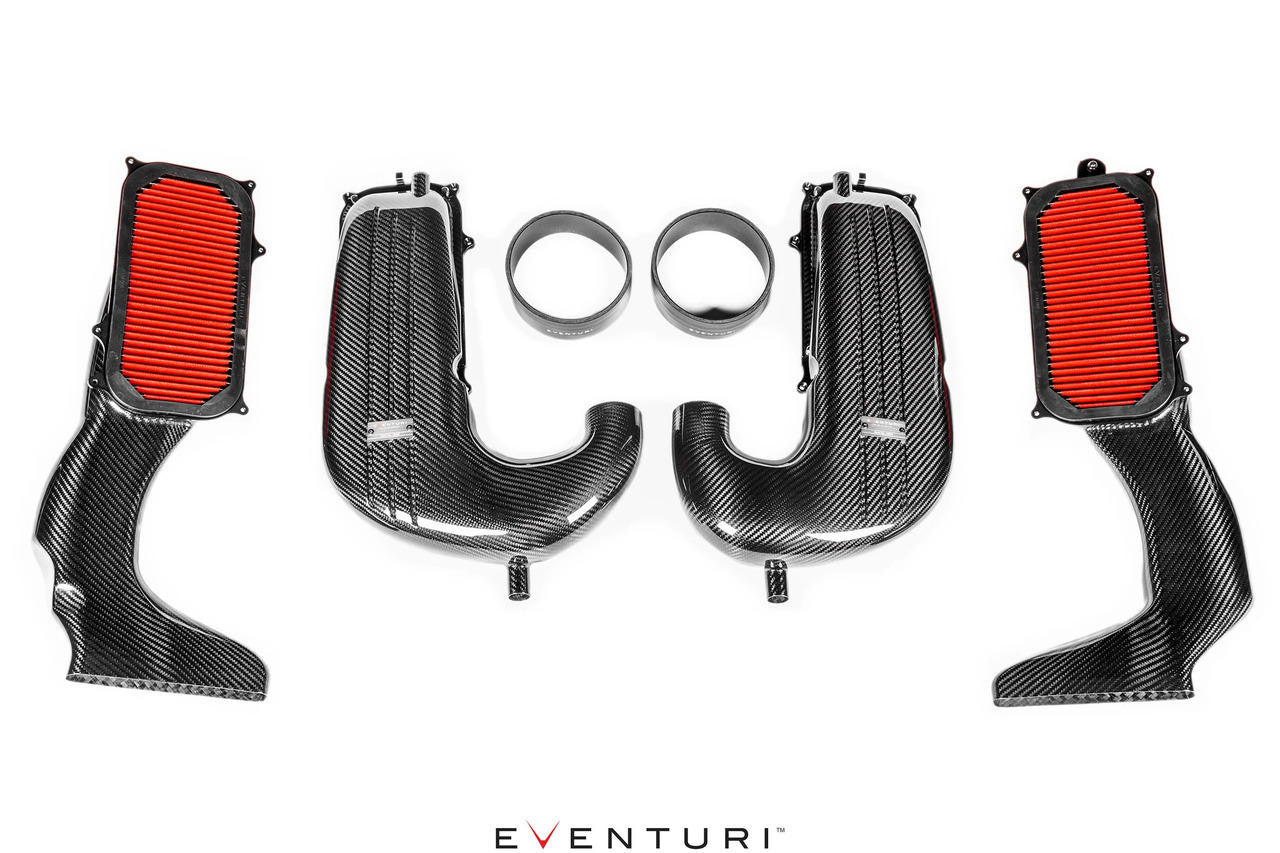

Each intake system consists of

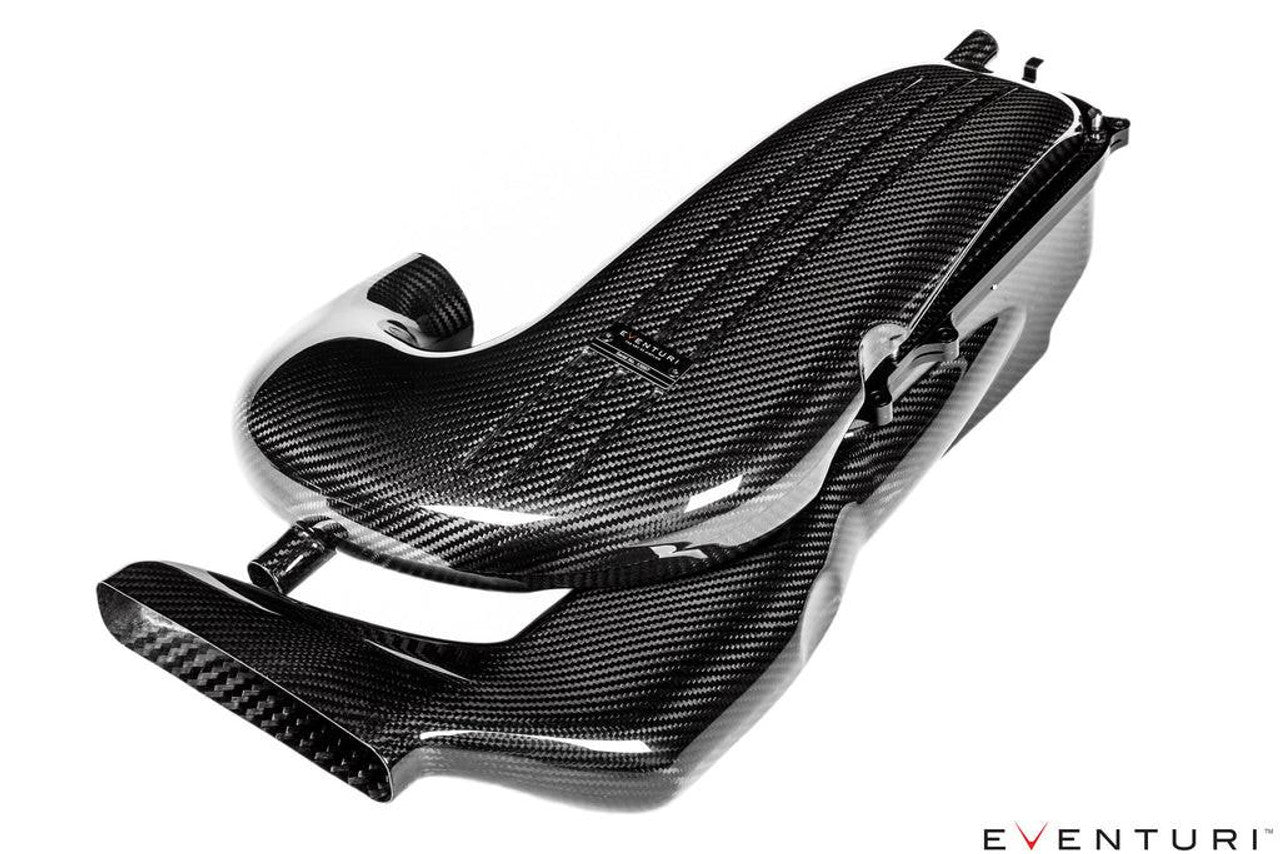

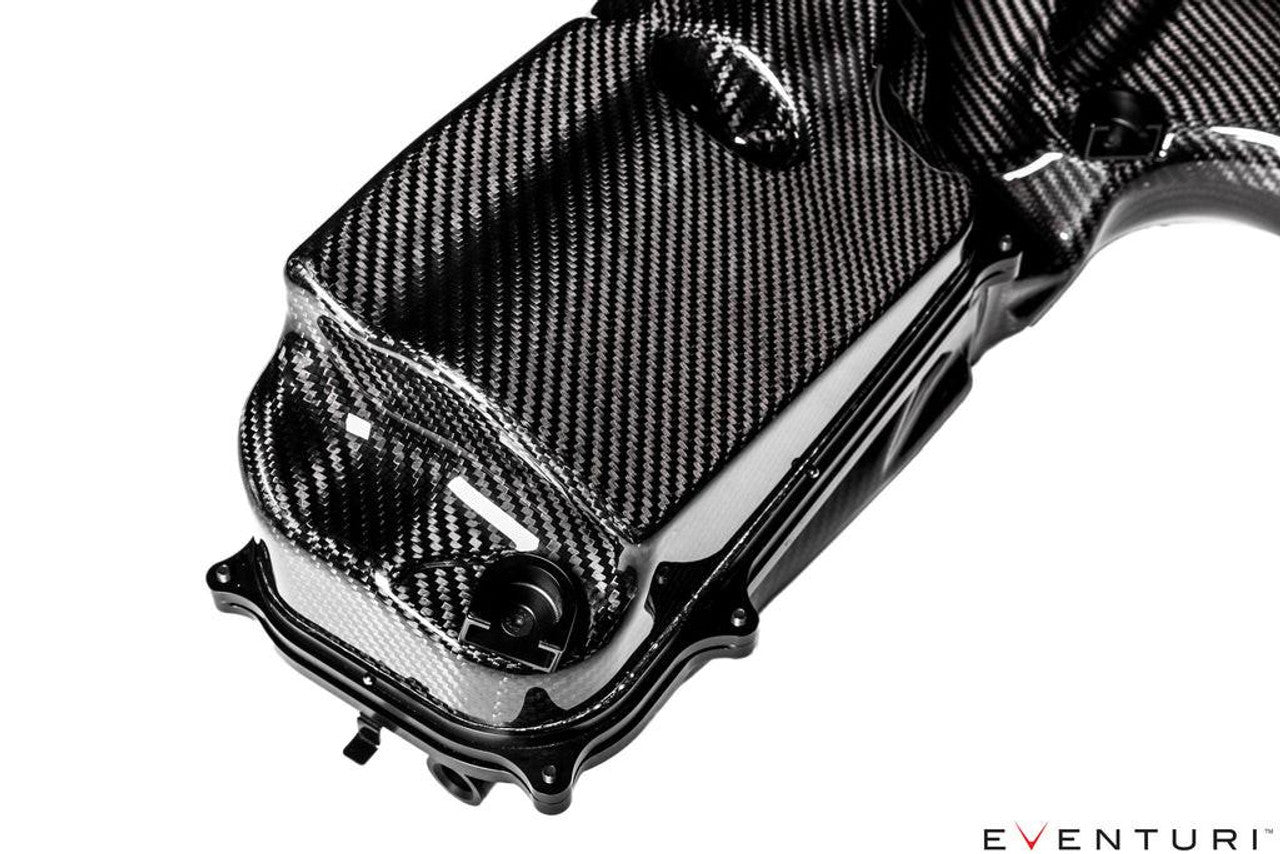

• 2 x Carbon Fiber Airbox Lids with Turbo Inlet Transitions

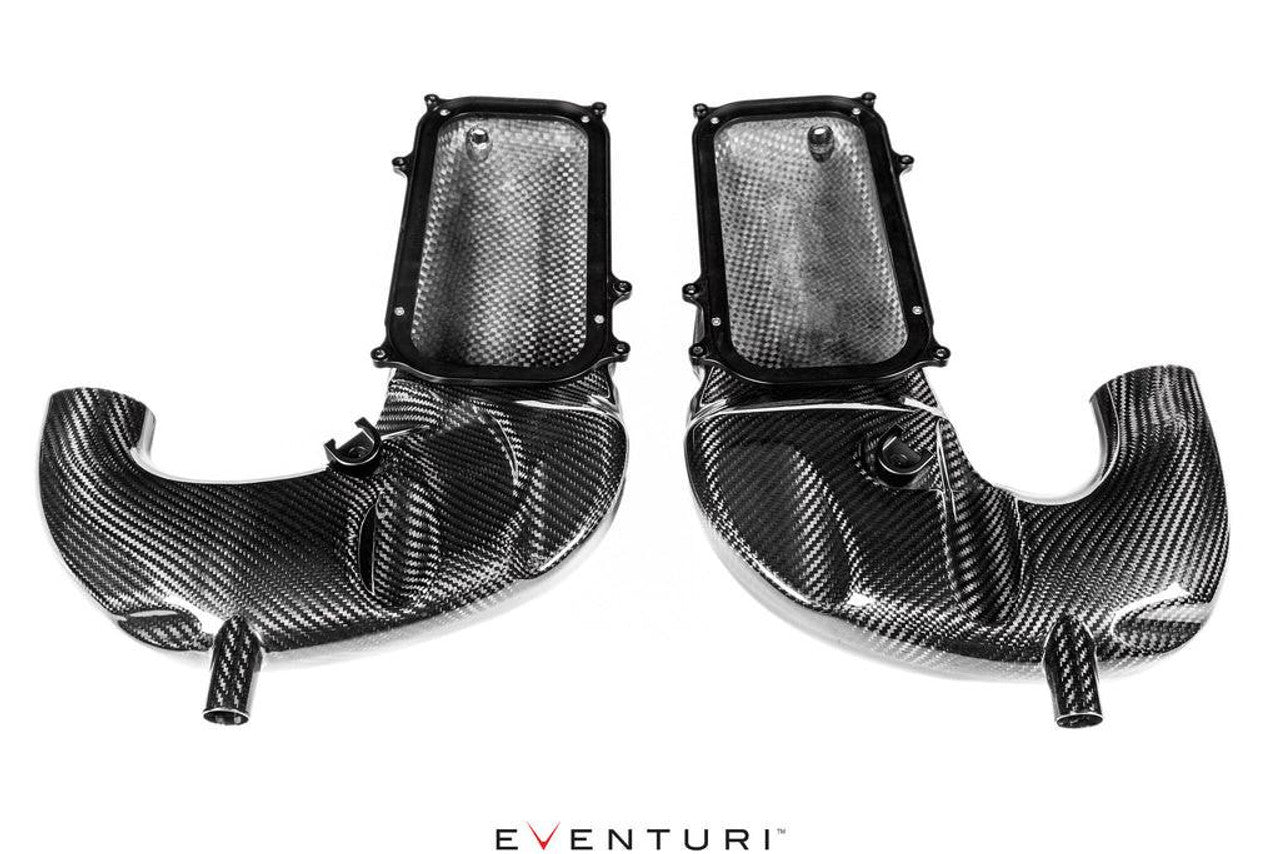

• 2 x Carbon Fiber Airbox Bases with Inlet Duct Transitions

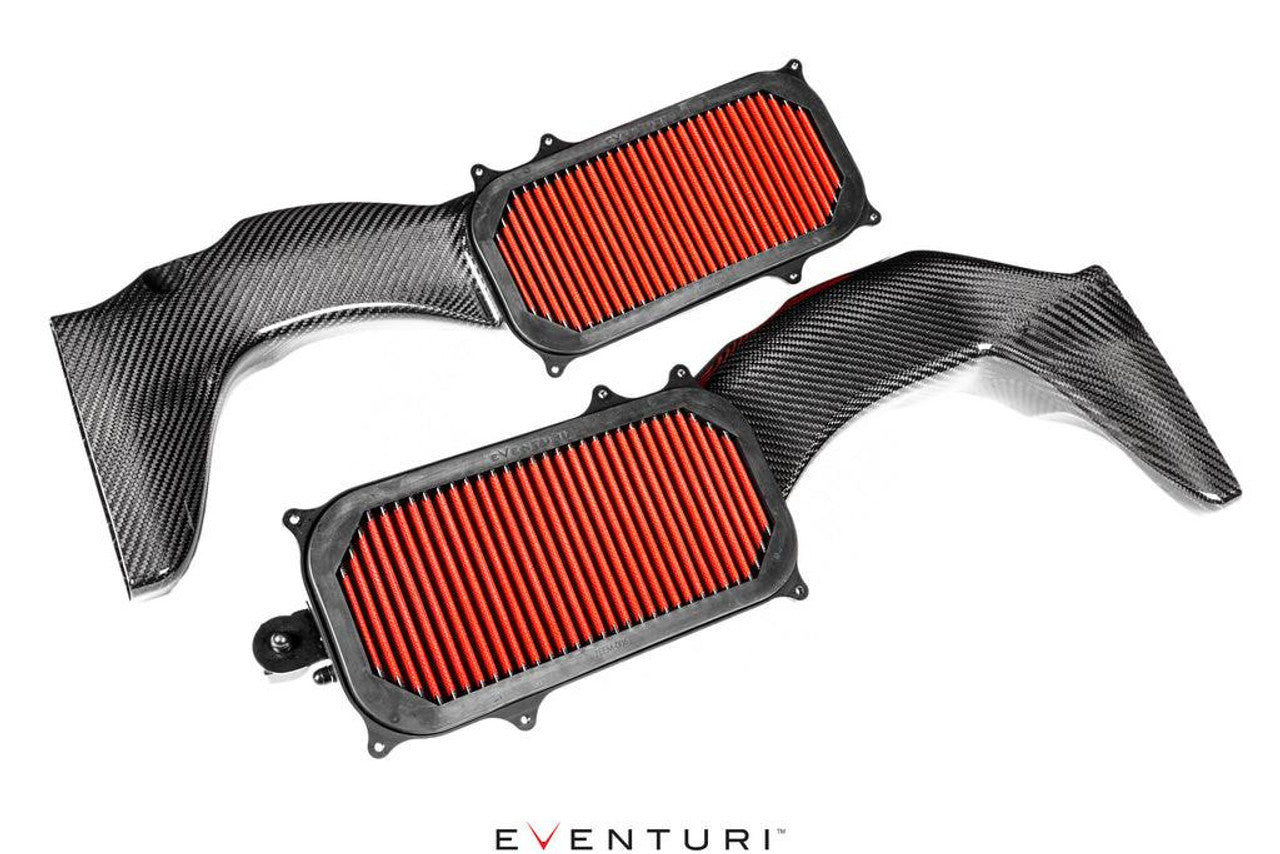

• 2 x Bespoke High Flow Panel Filters
• 2 x CNC Machined Stainless Steel Inlet Flanges
• 4 x CNC Machined Aluminium Filter Flanges
• 2 x CNC Machined MAP Bosses
• 4 x CNC Machined Rubber Mount Holders
• Laser Cut Stainless Steel Bracket Work
