Eventuri BMW G05 X5 / G06 X6 / G07 X7 M50i Black Carbon Intake System

Introducing our Eventuri BMW G05 X5 / G06 X6 Black Carbon Intake System. This intake is an adaptation of our X5M intake which was a complete redesign of the stock airboxes with the aim of reducing pressure loss while increasing the flow rate and keeping inlet temperatures low. With the stock cold air feeds at the front of the car and the turbo inlets facing the rear of the car, the airflow has to negotiate a 180 degrees turn through each airbox resulting in a flow restriction. To overcome this we have introduced an additional cold air feed from the scuttle panel, which results in a more direct flow path to the turbo inlets. The additional feeds allow the intake to have a higher flow rate whilst keeping IATs low and have an additional benefit of de-restricting the sound of the turbos. With the intake openings now facing the cabin, the turbo flutter and pressure release sounds are clearly audible, elevating the driving experience to another level.

The Eventuri Difference

The X5 M50i Eventuri system uses our Patented Carbon Fiber Housings with our Gen 2 bespoke filters, which provide an aerodynamically efficient airflow path from the filter to the turbos. Not just another cone filter with a heat shield but a unique design which invokes the Venturi effect and maintains laminar flow conditions to reduce the drag on the turbo. You can read more about the housing design and how it works HERE.

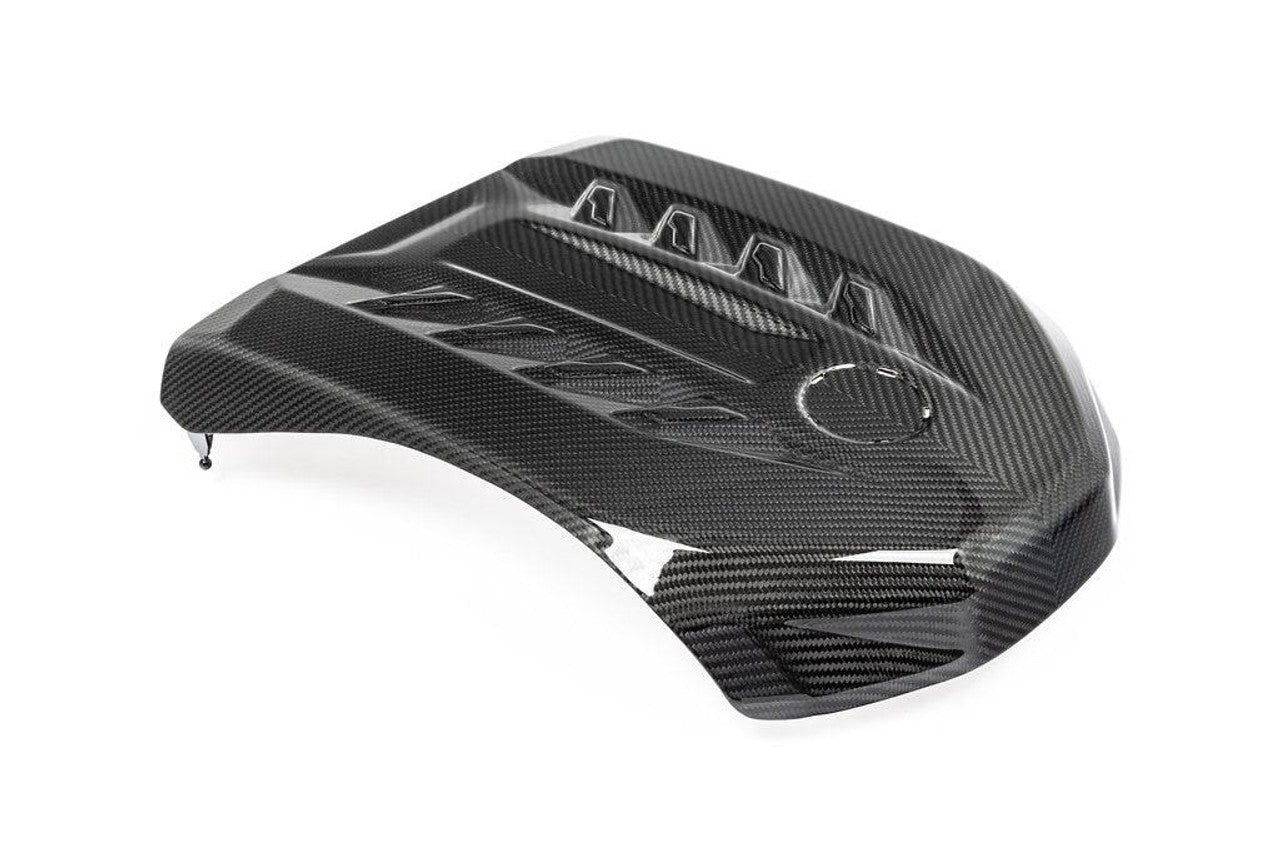

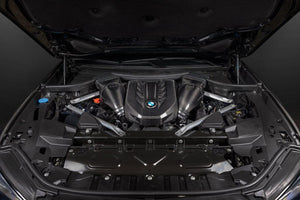

Since our filter housings have been designed for maximum volume, the OEM engine cover no longer fits into place. So we have produced a redesigned cover which finishes off the engine bay, covering the engine hardware for a refined aesthetic. We have allowed for gaps between the engine cover and the intakes so that the heat coming off the engine can easily dissipate rather than soak into the intake system.

Application Guide:

• G05 X5 M50i
• G06 X6 M50i
• G07 X7 M50i

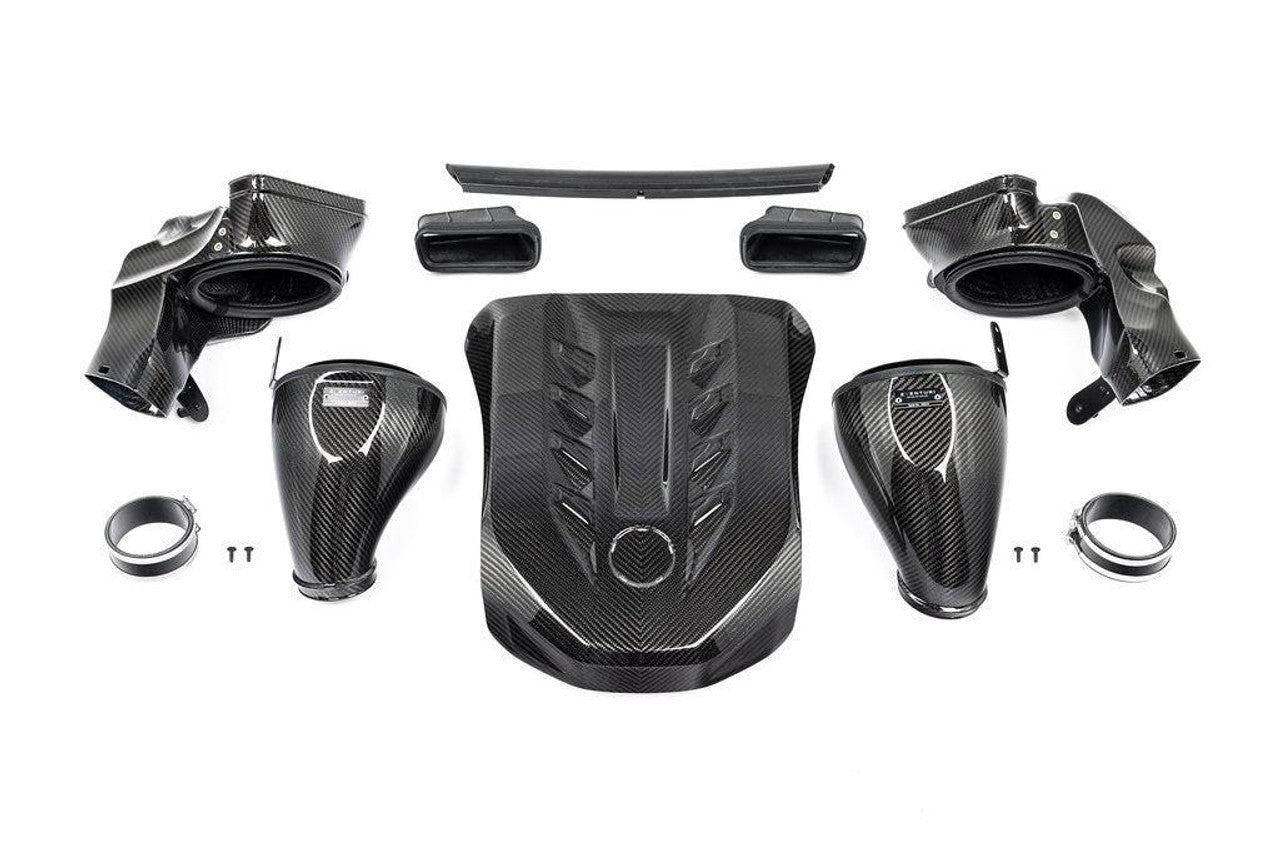

Each intake system consists of:

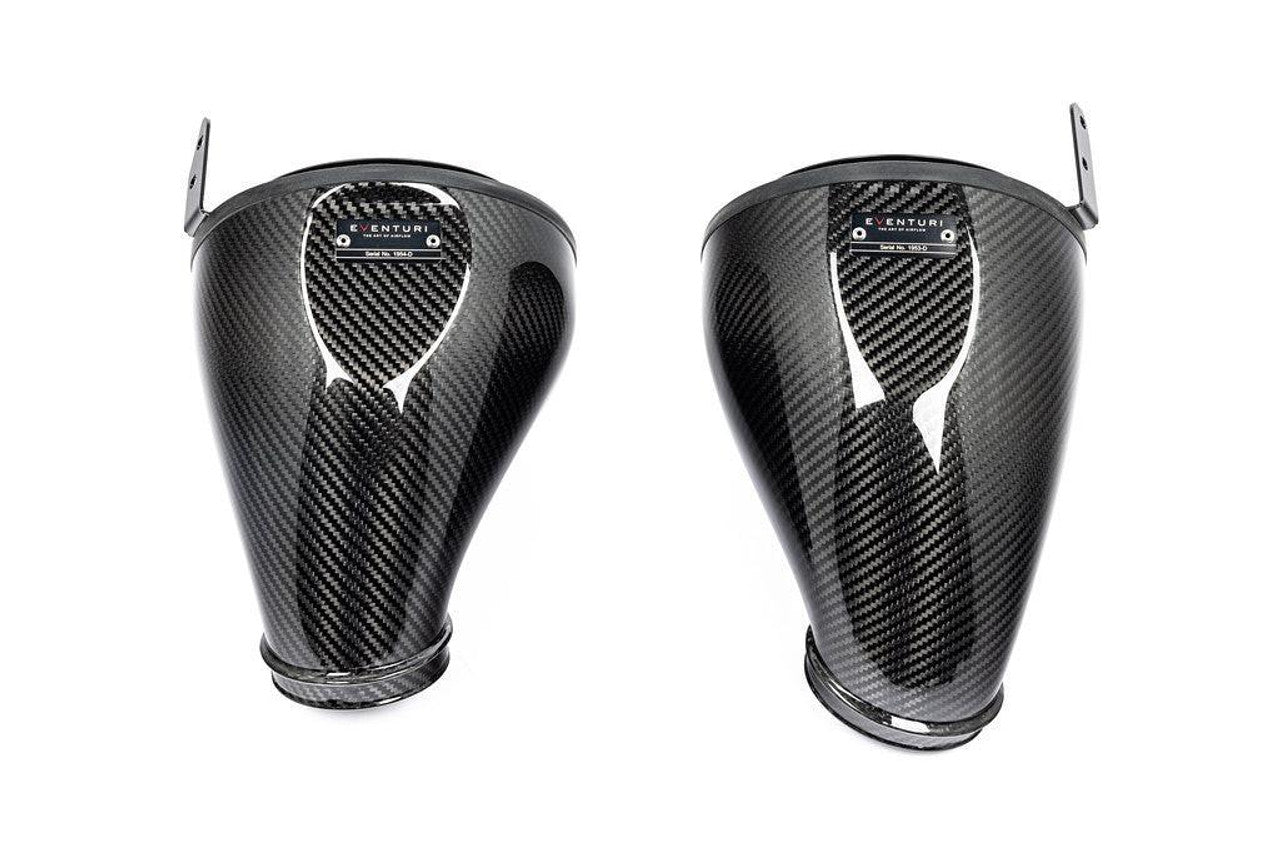

• 2 x Carbon Fiber Patented Venturi Filter Housings

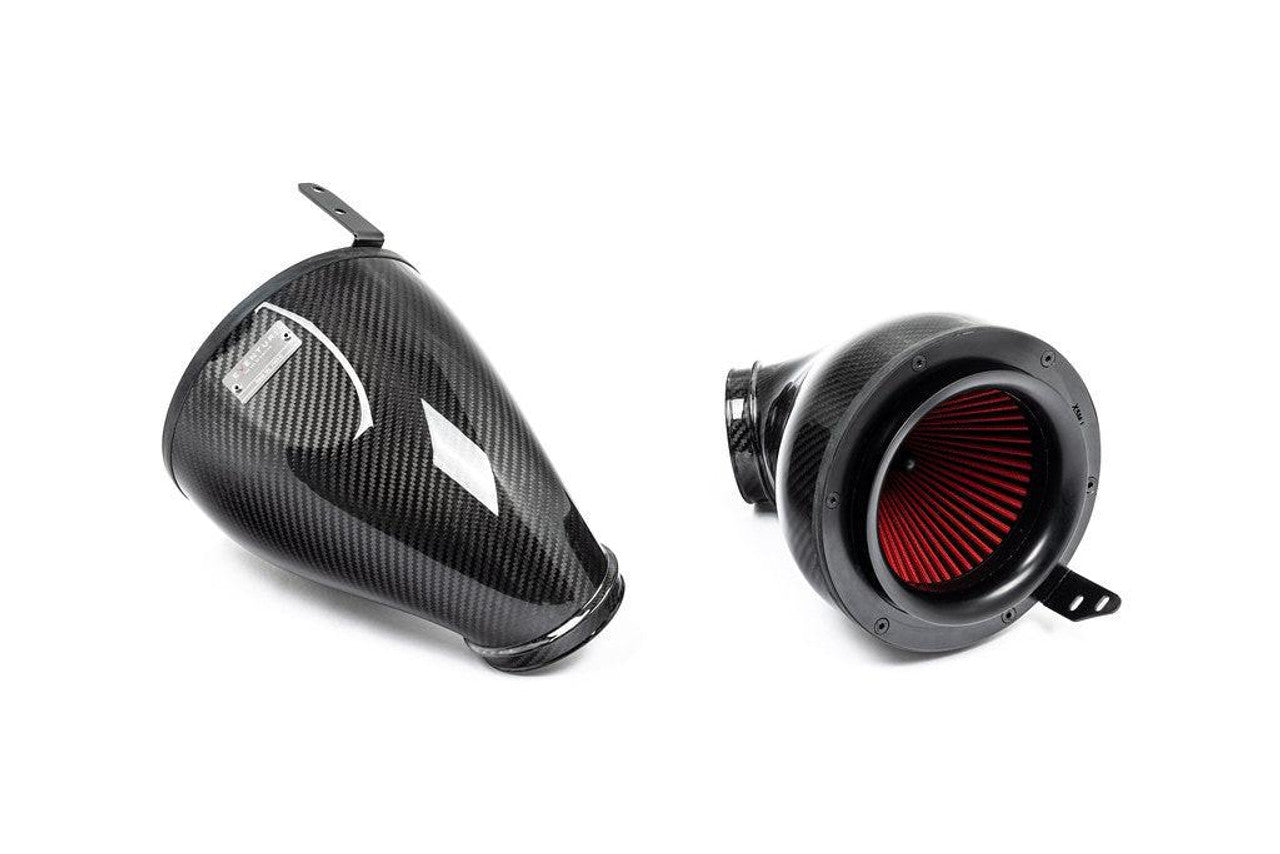

• 2 x Bespoke High Flow Dry Cone Filters

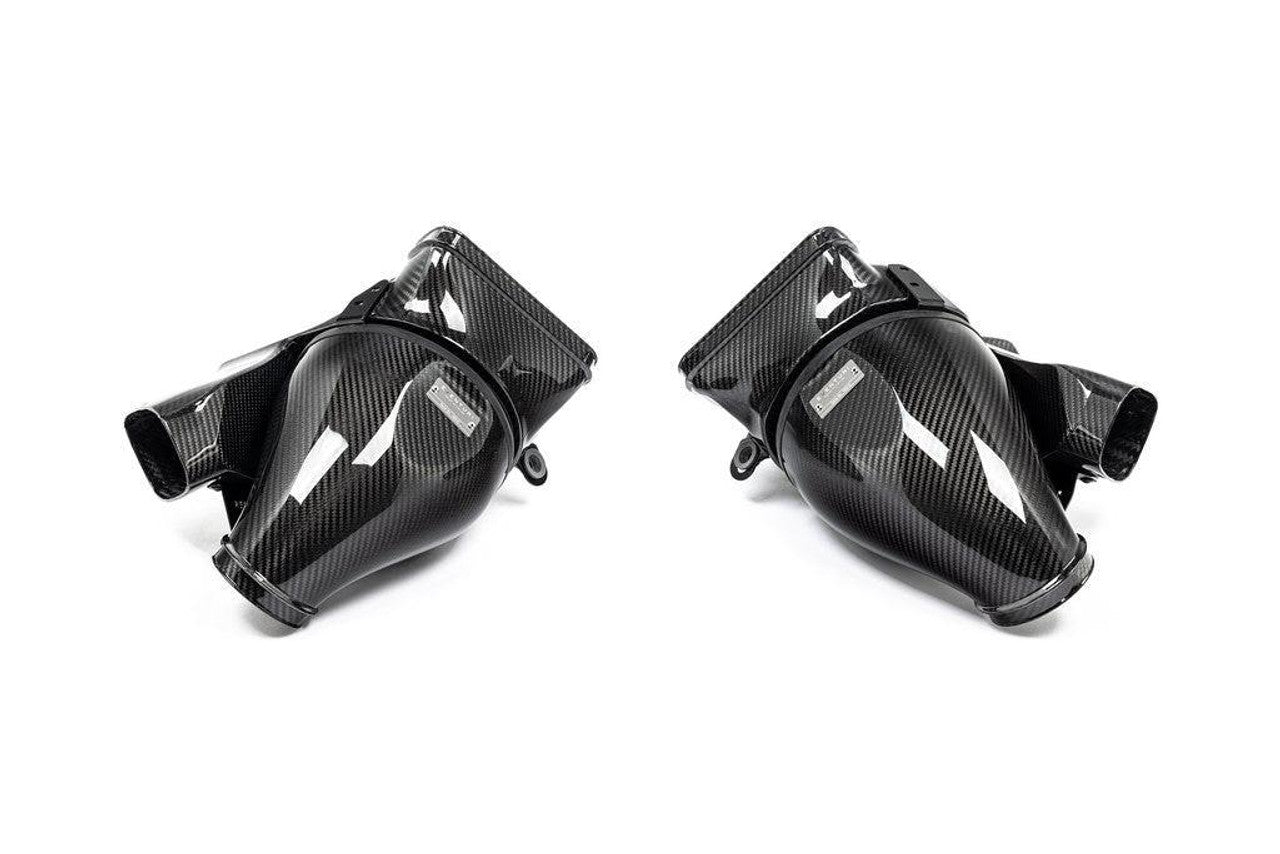

• 2 x Carbon Fiber Twin Air Ducts
• Carbon Fiber Engine Cover
• 2 x EPDM Rear Air Feeds
• Silicon Couplers
• CNC Machined Bracket Mounts
